Round Inflatable Rubber Culvert Balloon: Diameter Unchanged and Diameter Variable

Round inflatable rubber culvert balloon , also called round concrete precast inflatable rubber formwork, is common used in many concrete projects, such as stake, roof, beam, building and so on. Round inflatable rubber mandrel can be divided into two kinds: diameter unchanged round inflatable rubber culvert balloon and diameter variable round inflatable rubber culvert balloon.

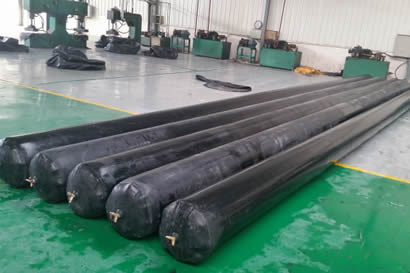

Five diameter unchanged round inflatable rubber mandrels are on the floor of the workshop.

Diameter unchanged round inflatable rubber culvert balloon.

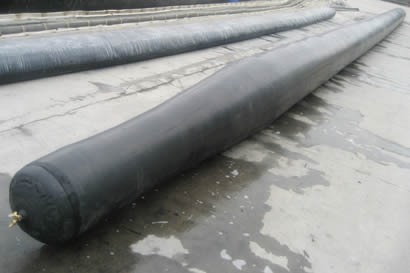

A black diameter variable round inflatable rubber mandrel is on the floor.

Diameter variable round inflatable rubber culvert balloon.

The details of round inflatable rubber culvert balloon:

Diameter (mm) Pressure (MPa)
80 0.12
120 0.10
150 0.08
200 0.07
250 005
400 0.04
500 0.035
600 0.03
700 0.027
800 0.026
900 0.025
2200 0.005
Diameter unchanged round inflatable rubber culvert balloon Diameter variable round inflatable rubber culvert balloon
Φ180mm × 6m - 20m Φ400mm × 10m - 40m 350 × 530 (540) mm × 10m - 40m
Φ200 (Φ220) mm × 10m - 20m Φ500mm × 10m - 40m 320 × 520 (540) mm × 10m - 40m
Φ240 (Φ250) mm × 15m - 40m Φ600mm × 10m - 40m 350 (360) × 560 mm × 10m - 40m
Φ300 (Φ330) mm × 15m - 40m Φ620mm × 10m - 40m 360 × 640 (650) mm × 10m - 40m
Φ350 (Φ360) mm × 10m - 40m Φ700mm × 10m - 40m 350 × 520 (550) mm × 10m - 40m

Package:

  • Packaged in plastic woven bags, on pallets, in containers.
  • Packaged according to customers’ requirements.

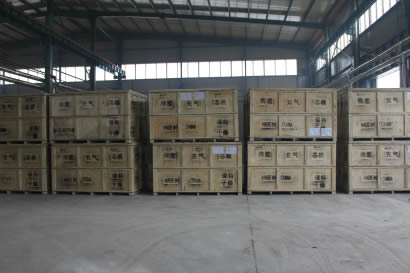

Many wooden boxes containing round inflatable rubber mandrels are on the floor of the warehouse.

Round inflatable rubber mandrels are packed in wooden boxes, making the transportation more convenient.

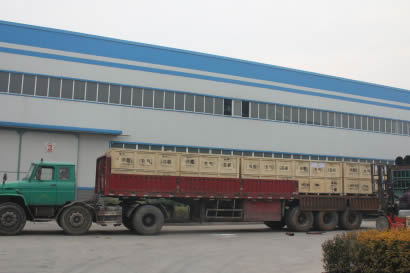

Some wooden boxes containing round inflatable rubber mandrels are on the truck.

Wooden boxes can prevent the round inflatable rubber mandrels from being damaged.
